Flip book animation layout

26 May 2010

Description:

This is the flip book animation layout plugin.

Flip layout plugin emulates real paper books pages flip. You can use Silex to design the pages of this Flash flip book, often called an e-catalog or a web magazine.

flipBook_plugin.zip content:

index.php

contains the php necessary to load the plugin. It waits for the hook SilexAdminApiReady to be called.
layouts folder

contains the flip.swf layout
media/flip folder: contains the flip sound files

flipbookplugin

Sources

They can be found on following subversion

Installation

Installation of the layout

download and unzip flip.zip from http://wp-manager.silexlabs.org/?p=648
paste “flip.swf” into Silex “layouts/” folder
paste “plugins/flipBook” folder to the plugins server of your silex server
paste media/flip folder to the media folder of your silex server

Installation of the test site

download and unzip “flip-sources.zip” from http://wp-manager.silexlabs.org/?p=648
paste “bin/flip.swf” into Silex “layouts/” folder
paste “contents/flip/” into Silex “contents/” folderof your silex server
paste “plugins/flipBook” folder to the plugins server of your silex server

Use

The flip configuration is stored into your publication configuration - in the manager, section “advanced parameters”. As an example, with the following params for a publication: flipWidth=910 flipHeight=628 flipPosX=50 flipPosY=65 flipAlign=TopLeft flipDuration=50 flipRichTextListName=RichTextList GRADIENT_OVER_COLORS=0xFF0000,0x00FF00,0x0000FF

you will see this result: [caption id=”” align=”alignnone” width=”559” caption=”Example of how the flip book layout can be configured”][/caption]

Parameters

Add the flip configuration data into your publication configuration (in the manager, section “advanced parameters”)

flipWidth (using snapShotTool_imageWidth parameter)

width of the page (or double page) of the web magazine, which is the part of the publication which will have a “flip book” effect during transition.

example: flipWidth=910

flipHeight (using snapShotTool_imageHeight parameter)

height of the page (or double page) of the web magazine, which is the part of the publication which will have a “flip book” effect during transition.

example: flipHeight=620

flipPosX (using snapShotTool_imageX parameter)

x position of the page (or double page) of the web magazine in the publication, i.e. the x coordinate of the top left corner of the flip book.

example: flipPosX=50

flipPosY (using snapShotTool_imageY parameter)

y position of the page (or double page) of the web magazine in the publication, i.e. the x coordinate of the bottom left corner of the flip book.

example: flipPosY=200

flipPreviewImageExtension (using snapShotTool_imageType parameter)

Extension of the image previews of the pages. It may be jpg or png. The preview is displayed while the page is turning.

optional

examples: flipPreviewImageExtension=jpg or flipPreviewImageExtension=png

snapShotTool_layoutDepth

depth of the layout to be taken as snapshot source, and which gives its name to the image.

example: when the user takes a snapshot of page /start/layer1/layer1-1/, the picture will be named “start.png” if layoutDepth is set to 0, or “layer1.png” if layoutDepth is set to 1, or “layer1-1.png” if layoutDepth is set to 2

default is “0”

flipDuration

duration of the transition between two pages, when it is automatically flipped (when the corner is notdragged)

example: flipDuration=20

flipAlign

Used as default corner to be flipped when using an internal link which opens a page of the flip book.

Possible values: TopLeft, TopRight, BottomLeft, BottomRight

example: flipDuration=TopRight

flipRichTextListName

name of the rich text list component (RichTextList.cmp.swf, part of the Oof components) which is used to store the pages list. The selection will be automatically set to the previous item when the user start to drag a corner but then cancel the page change. The list is expected to contain objects with an attribute “name” which is the name of the layout (silex page) and which is also the name of the preview, in contents/my.flip.book/my.page.name.jpg

example: flipRichTextListName=myRichTextList

flipListObjectsPageNameField

Name of the field of the page name, in the items of the list.

Default is “name”

flipMovementSmoothingRatio

Mouvement smoothing ratio which corresponds to the delay before the real corner position reaches the mouse position. Smooth the flip motion while dragging the page.
Recommended values: between 0 and 10.

examples: flipMovementSmoothingRatio=3

pageTurnSoundUrl

Sound file used when turning the page.

Default value: media/flip/turn.mp3

pageDragSoundUrl

Sound file used when dragging the page.

Default value: media/flip/drag.mp3

Gradient parameters:

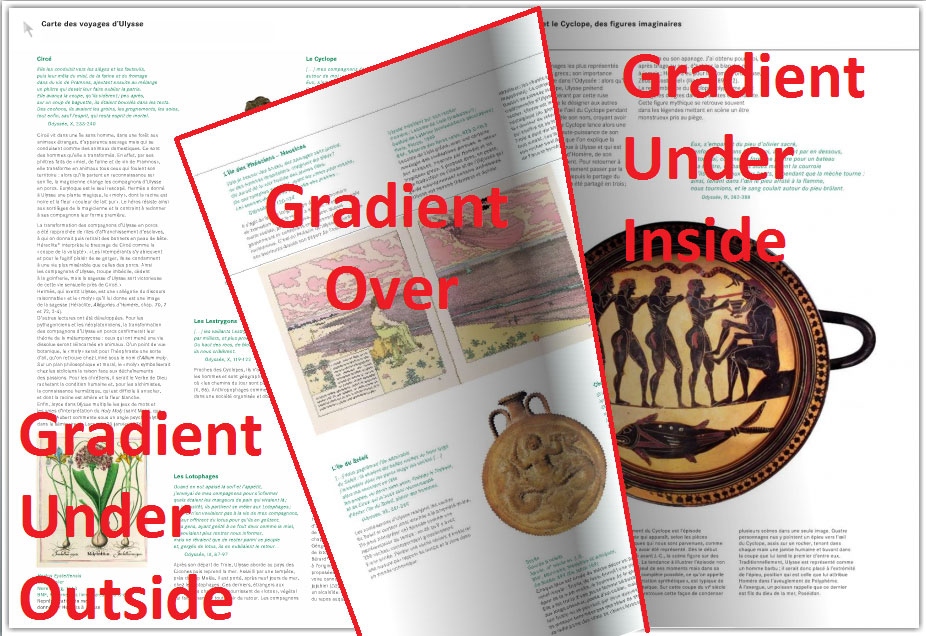

Here are parameters related to the shadow gradient applied over the “over” page, i.e. the page in the foreground which is beeing turned. For more information

GRADIENT_OVER_FILLTYPE
GRADIENT_OVER_COLORS
GRADIENT_OVER_ALPHAS
GRADIENT_OVER_RATIOS

Here are parameters related to the shadow gradient applied over the “under inside” page, i.e. the page which is beeing revealed (next page). For more information

GRADIENT_UNDERINSIDE_FILLTYPE
GRADIENT_UNDERINSIDE_COLORS
GRADIENT_UNDERINSIDE_ALPHAS
GRADIENT_UNDERINSIDE_RATIOS

Here are parameters related to the shadow gradient applied over the “under outside” page, i.e. the page which is beeing hidden (previous page). For more information

GRADIENT_UNDEROUTSIDE_FILLTYPE
GRADIENT_UNDEROUTSIDE_COLORS
GRADIENT_UNDEROUTSIDE_ALPHAS
GRADIENT_UNDEROUTSIDE_RATIOS

In the publication, open a page which uses “layouts/flip.swf” as the layout. In this page, you can add components in the corners with the following instructions on it. If the components are not icons, then you have to add an action on each of the components like “onRelease open:start/layer1/web.mag.page2”. The flipAlign value is determined automatically if the flipRichTextListName is defined.

For the top left corner: onPress layout.startFlip onPress silex.config.flipAlign=TopLeft

For the top right corner: onPress layout.startFlip onPress silex.config.flipAlign=TopRight

For the bottom left corner: onPress layout.startFlip onPress silex.config.flipAlign=BottomLeft

For the bottom right corner: onPress layout.startFlip onPress silex.config.flipAlign=BottomRight

When you put an internal link which opens a page of the flip book, before opening the page, choose the corner which will automatically turned with these instructions. It is automatic if the flipRichTextListName is defined.
silex.config.flipAlign=TopLeft
or
silex.config.flipAlign=TopRight
or
silex.config.flipAlign=BottomLeft
or
silex.config.flipAlign=BottomRight

Licence

This contribution is released under the GPL License: This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License (GPL) as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

To read the license please visit http://www.gnu.org/copyleft/gpl.html

To do List

sound
bug list
update l archive sur la platform + demo en ligne

Known bugs

. repertoire themes (prendre l url avec le service web ou tenir compte de la variable content
. documentation is obsolete?

flip bugs
. bug preview
. bug saut

Solutions

attendre fin preload 2 pages pour effacer le gabarit pr√©c√©dent / faire apparaitre le nouveau
. bug preview pour pages connexes
. bug saut
hook imagesLoaded + attendre fin chargement images pour effacer le gabarit pr√©c√©dent / faire apparaitre le nouveau
. bug saut

FLIP
-> swf comme preview
. script site_editor.php
. CDF
. doc et PreviewFileExt de la conf
Enfin, la page start ne mène pas automatiquement à la page.1 pourtant
